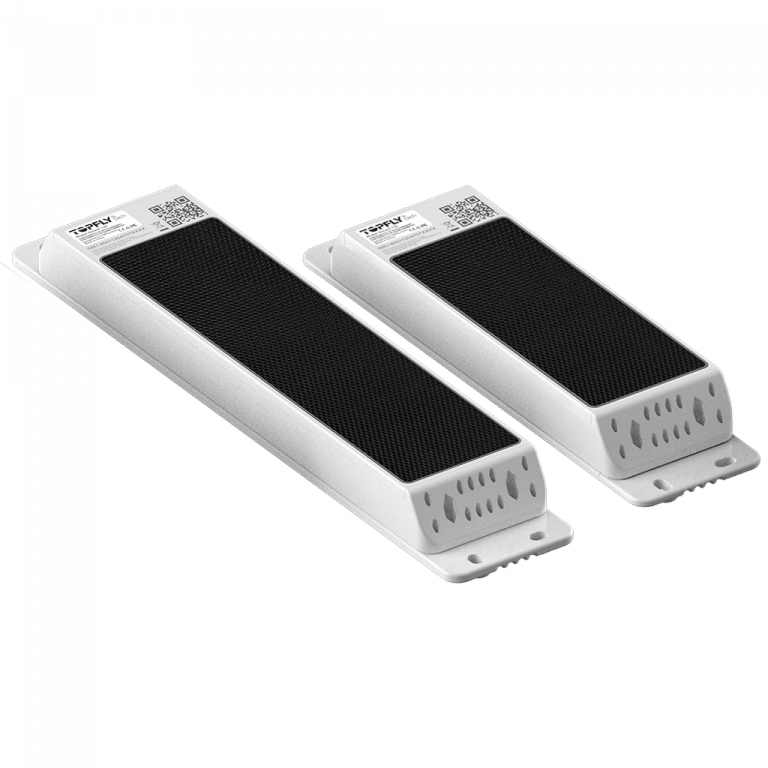

SolarX 130
(4G CAT-1)
Solar Powered Asset Tracker
Planned Certificates
SolarX 130 is suitable for tracking and monitoring assets such as multi-sized containers. It reports alarm to server for events of start moving, stop moving, device removal, etc. It works with BLE temperature sensor, door sensors etc.
Features
Real time and buffer locations
Location updates as fast as every 3s, with up to 49,000 points buffered offline
Movement alerts
Alerts for asset moving and parking
Solar powered
It obtains power through solar panel to extend battery life
Real time and buffer locations
Location updates as fast as every 3s, with up to 49,000 points buffered offline
Movement alerts
Alerts for asset moving and parking
Solar powered
It obtains power through solar panel to extend battery life
Rugged construction
Thick and solid casing and rugged construction for outdoor uses
Rugged construction
Thick and solid casing and rugged construction for outdoor uses
Long life battery
Rechargeable Li-Polymer 15000/7500 mAh battery, unlimited standby power upon proper setting
BLE 5.3 for sensors
Compatible with TOPFLYtech’s BLE temp & humi senor, door status, wireless relay and your own sensors
Long life battery
Rechargeable Li-Polymer 15000/7500 mAh battery, unlimited standby power upon proper setting
BLE 5.3 for sensors
Compatible with TOPFLYtech’s BLE temp & humi senor, door status, wireless relay and your own sensors
Removal alerts
Alerts sent when device is pulled off from asset
Easy installation
It can be mounted with magnets, screws, polyurethane or heavy duty tape by end users
IP67 waterproof
Tested in 5-meter water pressure environment for 15 hrs
Removal alerts
Alerts sent when device is pulled off from asset
Easy installation
It can be mounted with magnets, screws, polyurethane or heavy duty tape by end users
IP67 waterproof
Tested in 5-meter water pressure environment for 15 hrs
Technical Specifications
Network/Operating Band
LTE FDD Cat 1:
B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/
B20/B25/B26/B28/B66
LTE TDD Cat 1: B34/B38/B39/B40/B41
GSM (2G): 850/900/1800/1900 MHz
GNSS Specifications
GNSS Chipset: All-In-One GNSS Receiver
GNSS System: GPS + Glonass + Beidou + Galileo + QZSS（SBAS）
Receiver type: 47 tracking / 47 acquisitions- channel GNSS receiver
Acquisition: -147 dBm
Reacquisition: -159 dBm
Tracking: -166 dBm
Horizontal Position Accuracy: Autonomous: < 2 m CEP
TTFF @ -130 dBm with (without) Easy
Cold Start: < 28s
Warm Start: < 25
Hot Start: < 1s
Interfaces
Charging and Data Transmission: Type-C connector (A to C and C to C USB cable)
Network, GNSS Antenna: Internal only
Indicator LED: Battery, Network, GNSS
FOTA: Yes
Physical Power Switch: Touch, 1
Light Sensor: Yes
Temperature Sensor: 1 internal temperature sensor
BLE 5.3: yes
General Specifications
Waterproof: IP67
Dimensions:
PN:02: 216.5 × 67.0 × 28.0 mm (8.52 × 2.63 × 1.10″ )
Weight:
PN:01: 698.9g (24.65 oz)
PN:02: 459.4g (16.20 oz)
Battery: Rechargeable Li-Polymer
PN:01: 15000mAh/3.7V
PN:02: 7500mAh/3.7V
Charging & Data Communication: Magnetic USB cable
Solar Panel: For charging the tracker battery
Operating Temperature： -30℃ ~ +85℃ (-22°F ~ 185°F)
Mounting: Cable ties, screws, double sided tape
Air Interface Protocol
Transmit Protocol: TCP, UDP, MQTT, SMS
Geo-fence: Support up to 64 internal geo-fence regions
Low Power Alarm: Sending alarm when battery is low
Motion Detection: Motion alarm based on internal 3-axis accelerometer
Removal Alarm: Sending alarm when the light sensor detecting the light changing
Certification (Planned)
CE, FCC, RCM, NBTC, TDRA, ANATEL, CITC
