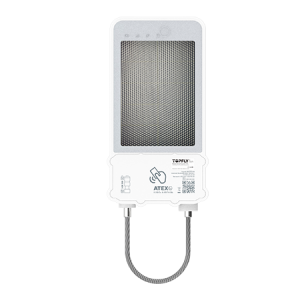

SolarGuardX 120
Solar Powered BLE Smart Sub-Lock
Completed Certificates
SolarGuardX 120, a solar powered BLE smart sub-lock, has completed key international certifications including CE, FCC, RCM, ATEX, TDRA, NBTC, and Anatel. These certifications confirm compliance for intelligent locking applications in regulated and hazardous environments, supporting secure asset protection, logistics operations, and cross-border transportation projects across multiple regions.
The master-slave elock system consists of one main elock that communicates with one or more secondary locks through Bluetooth Low Energy (BLE) technology. This setup from SolarGuardX 110 / SolarGuardX 200 allows for synchronized locking and unlocking of multiple access points, making it ideal for complex logistics operations.
Features
Solar powered
It obtains power through solar panel to extend battery life
BLE 5.3 Long Range
Up to 1000m (3280 ft) connection.
(Open Field, Power: 8 dBm (default)
Motion detection
Alerts for asset moving and parking
Solar powered
It obtains power through solar panel to extend battery life
BLE 5.3 Long Range
Up to 1000m (3280 ft) connection.
(Open Field, Power: 8 dBm (default)
Motion detection
Alerts for asset moving and parking
Rugged construction
Thick and solid casing and rugged construction for outdoor uses
Rugged construction
Thick and solid casing and rugged construction for outdoor uses
IP67 waterproof
Tested in 5-meter water pressure environment for 15 hrs
Security alarm
For locking, unlocking, rope cutting, and cover removal
IP67 waterproof
Tested in 5-meter water pressure environment for 15 hrs
Security alarm
For locking, unlocking, rope cutting, and cover removal
FOTA
Firmware Upgrade Over-the-air
FOTA
Firmware Upgrade Over-the-air
Built-in strong magnet
Built-in magnet for easy installation on assets
Built-in strong magnet
Built-in magnet for easy installation on assets
Technical Specifications
General Specifications
Waterproof：IP67
Dimensions： 113.8mm*90mm*36.9mm (4.48″ × 3.54″ × 1.45″) without rope
Weight：1060g (37.4 oz)
Battery：Rechargeable Li-Polymer 2500mAh/3.7V
Charging：2 PlN (Recommend using 5V 1A adaptor, 3 hours charging)
Solar Panel：For charging the tracker battery
Operating Temperature：-40°C~85°C (-40°F~185°F)
Mounting：Built-in Magnet
Battery Life
Rechargeable Li-Polymer 2500mAh/3.7V
Interfaces
Charging Port：2 Pin 5V/DC
Indicator LED：Solar Charging Status, Battery, BLE, RFID
FOTA：Yes
Physical Power Switch：1
Temperature Sensor：1 temperature sensor
USB Type-C Connection：Data Communication
BLE 5.3：Yes
Air Interface Protocol
BLE Support：For SolarGuardX 110 Only
Alarms：Rope cut, moving, stop, lock, unlock, cover removal
Certificates
Completed: CE, FCC, IP67, ATEX
Planned: RCM, NBTC, CITC, TDRA, ANATEL
Multi-lock Solution
