HeroX 100
(4G CAT-1)
Advanced Hardwired Tracker with I/Os
HeroX 100 is an advanced level hardwired tracker that has I/Os that could be used for ignition detection, relay, buzzer, SOS button, RFID, CAN reading, 2-way Audio or your own accessories. When working with BLE sensors it can monitor the temperature, humidity, door status, etc. It’s an all-in-one model to serve your needs for customized solution.
Features
Real time and buffer locations
Real time location updates can be as frequent as 3s. Up to 49,000 location points can be saved in buffer if out of network coverage.
LTEM Global Bands
4G CAT-1 network global bands with 2G fallback is supported
BLE 5.1 Long Range
Compatible with TOPFLYtech’s BLE temp & humi sensor TSTH1-B, temp & door sensor TSDT1-B, wireless relay TSR1-B, driver ID tag and your own sensors
Ignition on/off alerts
Alerts for engine is switched on or off
Disconnection alerts
Alerts for device disconnected from power
Driving behaviour detection
Detecting reckless driving events such as harsh acceleration, turning, braking, crash and speeding
External power DC 5V - 32V
Wide range of external power supported
External antenna (optional)
External Antenna is available when installation spot signal is poor
Multiple I/Os
Multiple digital I/Os, analog input, 1-wire, RS485.
SD card (optional)
For extra memory for video recording with
additional camera
2-way audio (optional)

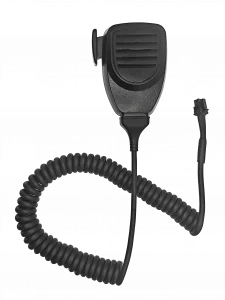

With our accessory, it supports push-to-talk, and 2-way audio feature
SOS button
Digital input is compatible with SOS button for emergency alerts.
Technical Specifications
LTE FDD Cat 1: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/
B20/B25/B26/B28/B66
LTE TDD Cat 1: B34/B38/B39/B40/B41
GSM:850/900/1800/1900 MHz
GNSS Chipset：All-In-One GNSS Receiver
Parallel GNSS：GPS+Beidou+Galileo+QZSS（SBAS）
Receiver Type：24 tracking / 66 acquisitions- channel GNSS receiver
Position Accuracy (CEP)：Autonomous < 1.5m
Standalone TTFF：Cold start: < 20s
Warm start: < 2s
Hot start: < 2s
Digital Input:
1 Positive Trigger Input for Ignition detection
(input range 0-32V, 5≤: ignition on,≤2V ignition off, from 2V to 5V: unstable status)
1 Negative Trigger Inputs for Panic button
2 Positive Trigger input for other using (input range 0-32V, 5≤: ignition on,≤2V ignition off, from 2V to 5V: unstable status)
Digital output: 2 digital outputs for relay control
Analog input: 2 Analog Inputs (0~32V DC, Can be configured as a digital input )
RS485 port: 2
1-wire: 1-wire temperature sensor and iButton driver ID(Maximum 8 channels)Indicator LED：Network and GNSS
Speakerphone: A push-to-talk or A Speaker and a Microphone
CAN BUS: CAN, SAE1939(FMS)
MicroSD: Maximum Memory of Supported Card is 128 GB
FOTA：Yes
BLE (Bluetooth Low Energy)：5.1 long range
WIFI: 2.4 GHz 802.11b (Rx)
Tracker Configuring: Type C Connector
Waterproof：IP41
Dimensions: 84.5mm*69.7mm*21.8mm(”3.32 *2.74” *0.86”)
Weight：80g (2.82oz)
Backup Battery：Li-Polymer 200 mAh/ 3.7V
Operating Voltage：5V to 32V DC
Operating Temperature：-30℃ ~ +80℃ (-22°F ~ 176°F)
Storage Temperature：-40℃ ~ +85℃ (-40°F ~ 185°F)
Transmit Protocol：TCP, UDP, MQTT, SMS
Protocol Check & Encryption Support: MD5/ AES256
BLE Accessory Support：Yes
Scheduled Timing/angle/distance Report：Report position and status at preset intervals
External Power Status Alarm：Report when external power is disconnected
Low Power Alarm：Report when backup battery is low
Speeding Alarm：Report when speed exceed the pre-set value
Towing Alarm：From internal 6-axis accelerometer
Remote Control：Remote output control
Network Signal Jamming Detection：Report network jamming
Data Roaming Control：Avoid additional data consumption
Driving Behavior Monitoring：Aggressive driving behavior detection, e.g. harsh braking and acceleration
Crash Detection：Accident data collection for reconstruction and analysis
