T-sense Pro Series
Multi-model BLE sensing modules for door status, cargo condition and rotation event monitoring
T-sense Pro Series is a BLE 5.1 sensing module series designed for door status, environmental condition and rotation event monitoring. With multiple model options, it helps fleet, logistics and industrial users capture key field events from trailers, containers, cargo spaces and rotating assets.
One platform, multi sensing tasks (Door Contact / Temperature & Humidity / Rotation). Built to detect field events that matter.
Features & Function

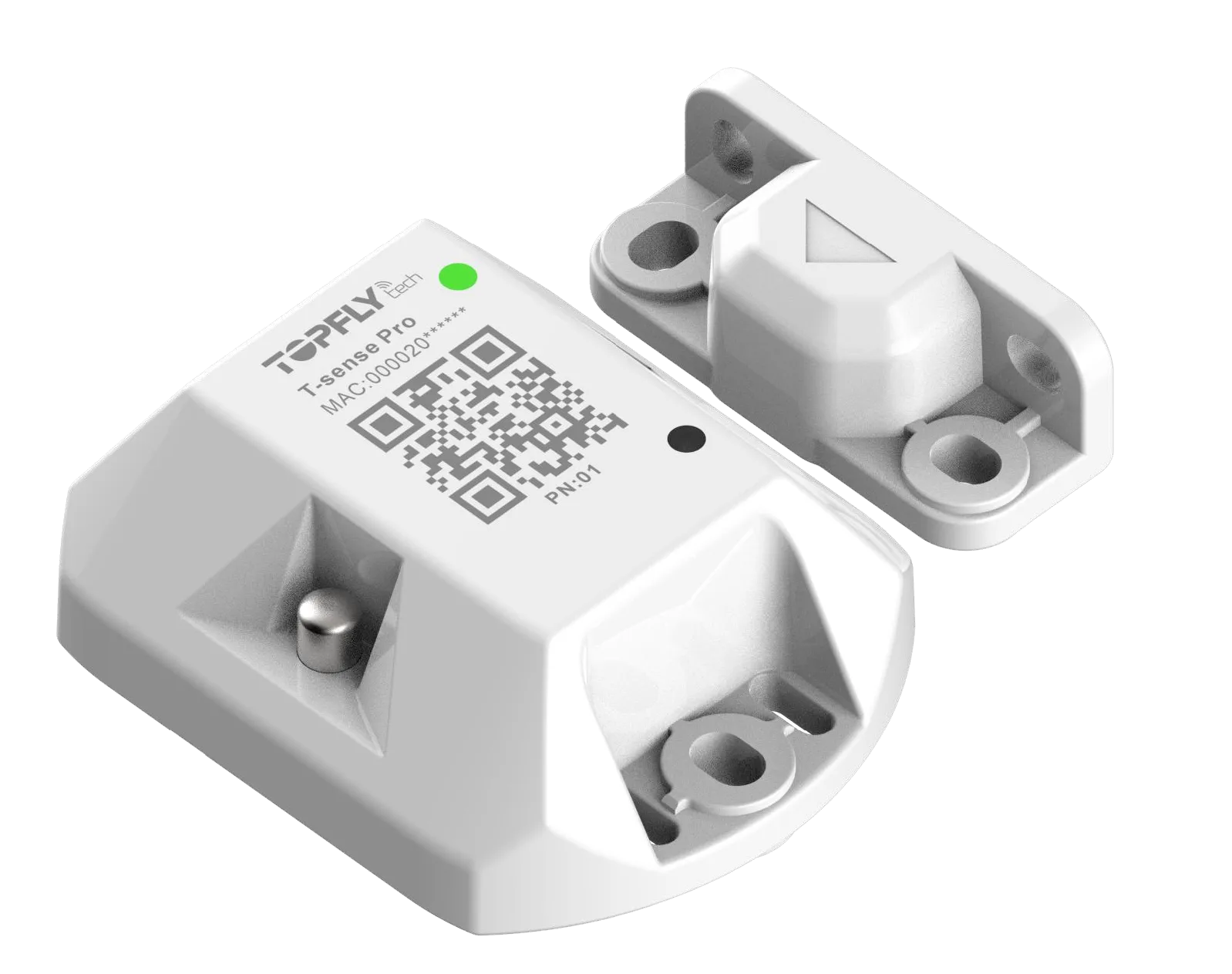

Door Sensor

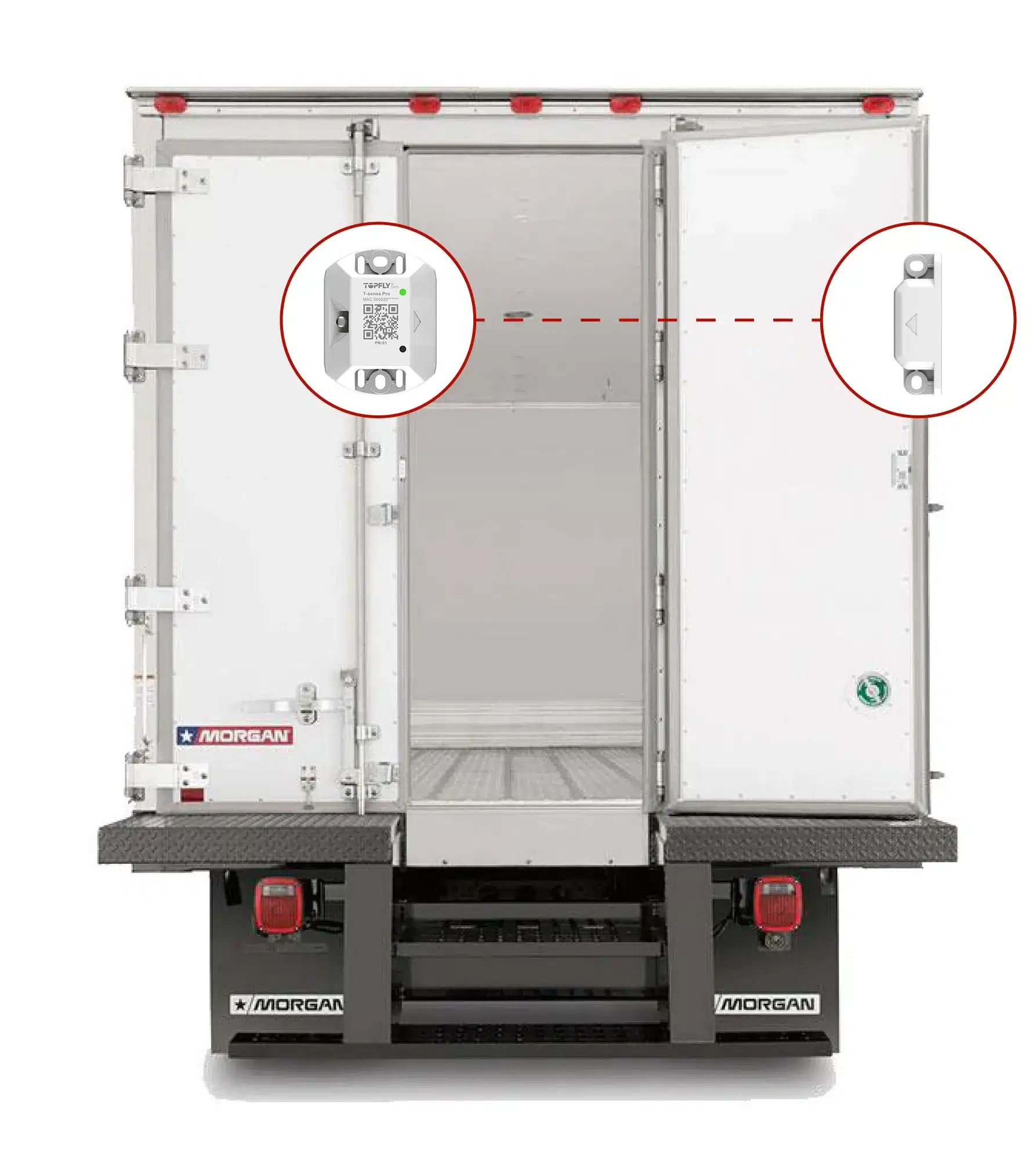

Monitor door open and close events with magnetic contact detection for trailers, containers, cabinets and cold-chain compartments.
Key Functions
- Door Sensor: Magnetic Contact
- Temperature Sensor
- Light Sensor
Built for
- Door status and access records
- Cold-chain door activity monitoring
- IP67 Weatherproof, Robust Design

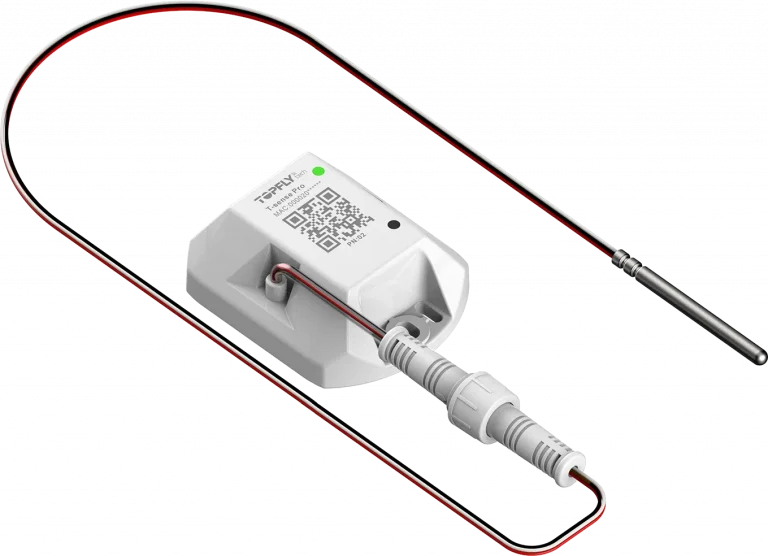

Probe Sensor
Use configurable external probes to monitor temperature, humidity or optional data at the actual sensing point.
Key Functions
- Configurable Temp/RH Probe Sensor
- Optional Probe for Other Data
- Light Sensor
Built for
- Cold-chain and environmental monitoring
- External probe placement inside cargo spaces
- IP67 Weatherproof, Robust Design

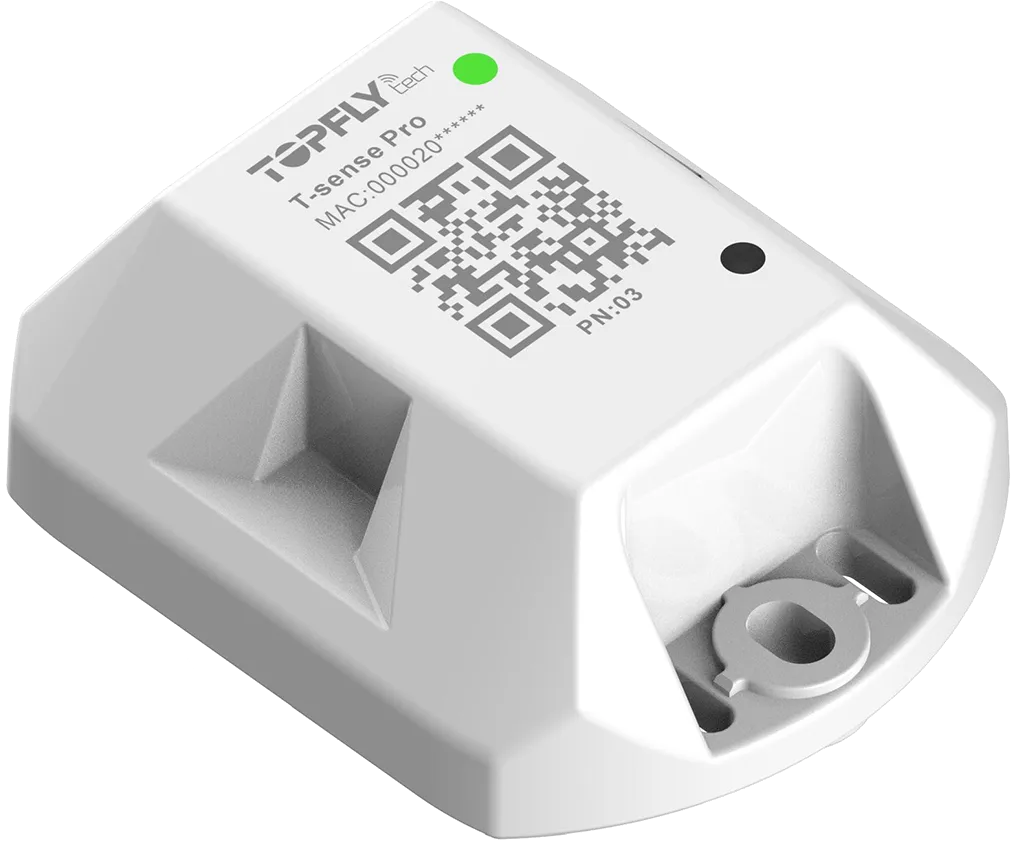

Rotation Sensor
Detect rotation, movement or usage activity from field assets such as reels, drums and rotating equipment.
Key Functions
- Rotation Monitoring
- Movement / usage activity detection
- Light Sensor
Built for
- Asset usage and movement visibility
- Reels, drums and rotating equipment
- IP67 Weatherproof, Robust Design
BLE 5.1
It can be used for data broadcasting and wireless configuration
High accuracy
Accuracy of ± 0.2 ℃ for temp
Frequent data broadcasting
Broadcasting data every 10s by default (configurable)
Door status
Real time monitoring for door status
Wide transmission range
Operating distance up to 400m (open field)
Wide range of operating temperature
Operating between -30℃ ~ +80℃ (-22°F ~ 176°F)
Historical data storage
Can store up to 15,000 temperature and humidity data in sensors to be extracted by phone
FOTA
Firmware upgrade Over-the-Air
Compare T-sense Pro Models
Select the right model by function, sensing capability and battery life.
| Product Model | Main Function | Built-in Sensors | Battery Life | Recommended Application |
|---|---|---|---|---|
|
PN01
Door Sensor
|
Door Sensor Door Open / Close Monitoring | Magnetic Door Contact, Temperature, Light Sensor | 8 Years 2400mAh / 3.6V Battery | Door status monitoring for trailers, containers, cabinets and mobile assets |
|
PN02
Probe Sensor
|
Probe Sensor Configurable Temp/RH Monitoring | Optional Probe for Other Data, Light Sensor | 10 Years 2400mAh / 3.6V Battery | Cold-chain, environmental and external probe monitoring |
|
PN03
Rotation Sensor
|
Rotation Sensor Rotation and Movement Event Detection | Rotation Sensor, Light Sensor | 8 Years 2400mAh / 3.6V Battery | Reels, drums, rotating assets and industrial equipment |
All T-sense Pro models are designed with IP67 weather proof housing and robust structure for logistics, fleet and industrial deployment.
Technical Specifications*
General Specifications
Product Series: T-sense Pro Series
BLE: 5.1
Protection Rating: IP67
Operating Temperature: (To be confirmed)
Broadcasting Interval: (To be confirmed)
Open-field Transmission Range: (To be confirmed)
Data Storage: (To be confirmed)
Firmware Upgrade: FOTA supported
Battery: 2400 mAh / 3.6 V battery
Configuration: Wireless configuration via BLE
PN01 Door Sensor
Main Function: Door open / close monitoring
Sensors: Magnetic door contact, temperature sensor, light sensor
Dimensions:
Sensor: 65 × 50 × 22.7 mm (2.56″ × 1.97″ × 0.89″)
Magnet: 44 × 17 × 15 mm (1.73″ × 0.67″ × 0.59″)
Recommended Application: Door status monitoring for trailers, containers, cabinets and cold-chain compartments

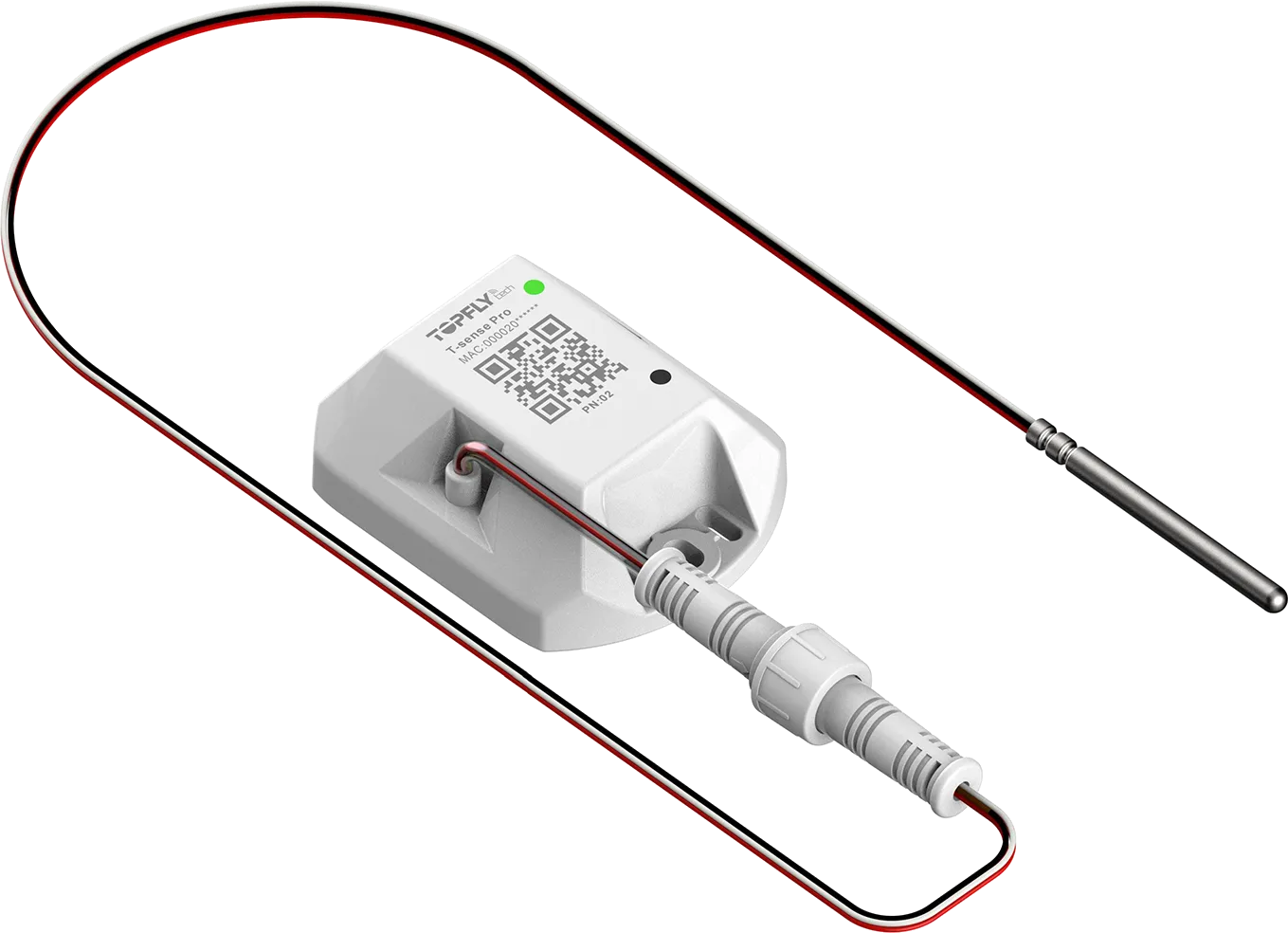

PN02 Probe Sensor
Main Function: Configurable probe monitoring
Sensors: Temperature / humidity probe, light sensor
Dimensions: 65 × 50 × 22.7 mm (2.56″ × 1.97″ × 0.89″)
Recommended Application: Cold-chain, environmental and external probe monitoring

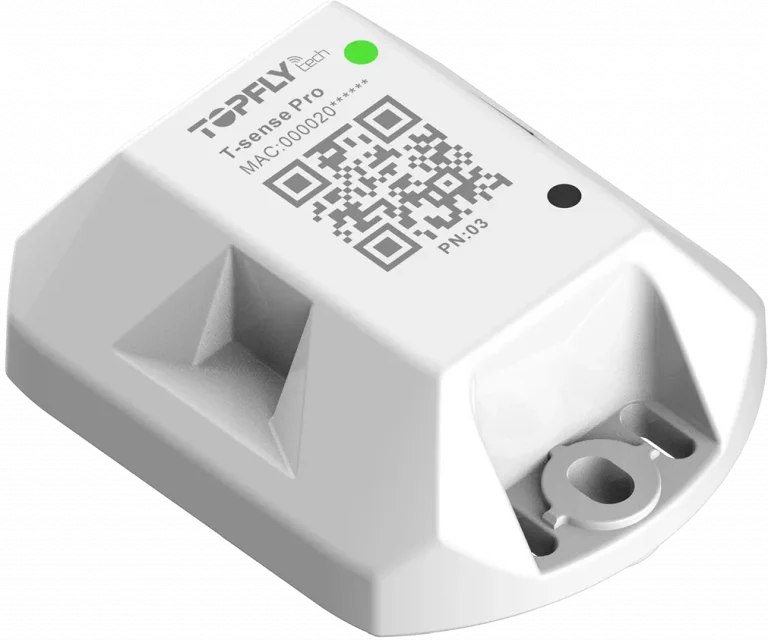

PN03 Rotation Sensor
Main Function: Rotation and movement event detection
Sensors: Rotation sensor, light sensor
Dimensions: 65 × 50 × 22.7 mm (2.56″ × 1.97″ × 0.89″)
Recommended Application: Reels, drums, rotating assets and industrial equipment
Battery Life
PN01: Up to 8 years*
PN02: Up to 10 years*
PN03: Up to 8 years*
*Battery life may vary depending on model configuration, broadcast interval, sensor trigger frequency, firmware version and operating environment. Detailed battery life data will be provided in the official datasheet.
* Specifications may vary by model configuration, firmware version and deployment environment. Final parameters are subject to the official product datasheet.
