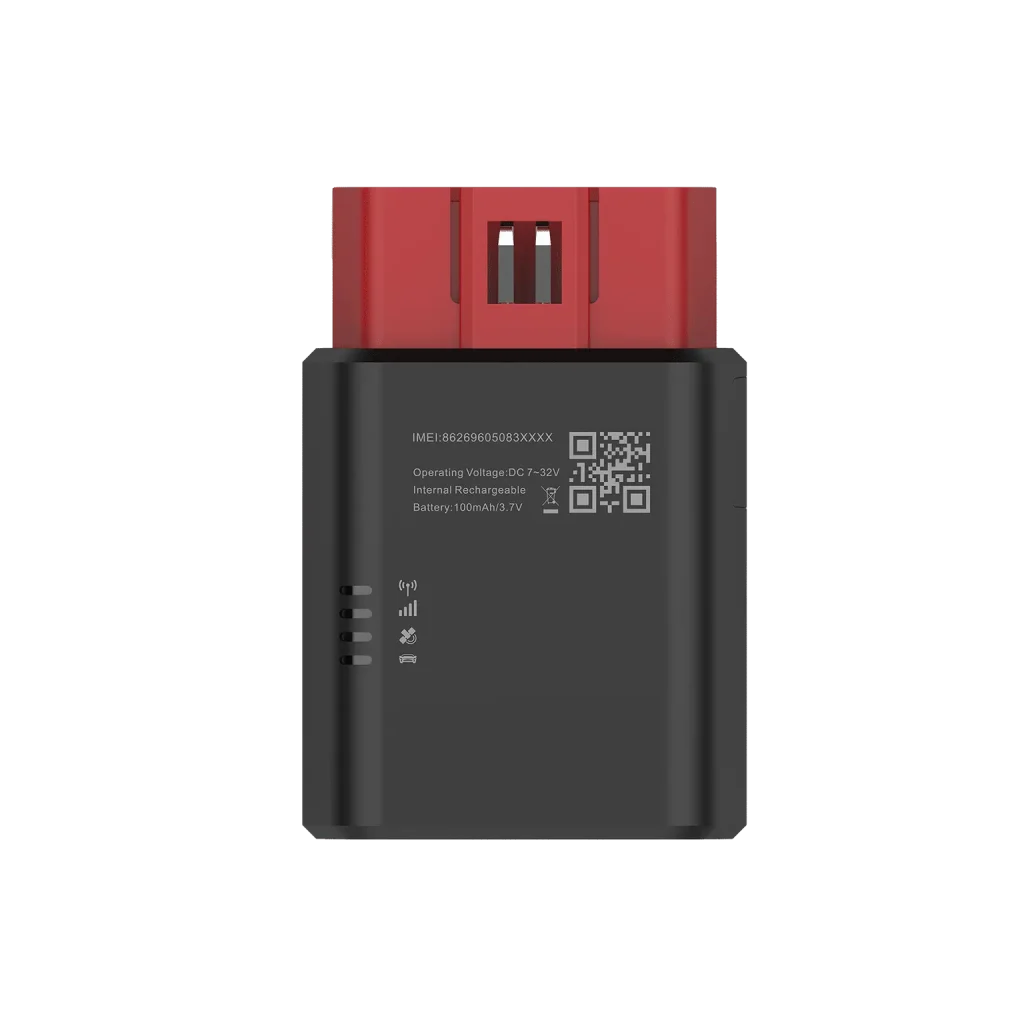

TorchX 110
(4G CAT1)

4G CAT-1 OBDII Tracker with BLE 5.0 and WIFI Positioning

This advanced Plug & Play OBDII tracker with CAN BUS reading provides heavy and light duty vehicle data such as ignition, VIN, odometer, fuel level, etc. It supports BLE and WIFI positioning

Features

Real time and buffer locations

Real time location updates can be as frequent as 3s. Up to 49,000 location points can be saved in buffer if out of network coverage

4G CAT-1/2G (global bands)

Supports all bands around the world.

Vehicle data reading

Reads data of: VIN, true odometer, fuel level, DTC, etc.

Disconnection alerts

Alerts for device disconnected from power

WIFI Positioning

WiFi Positioning offers more possibility to locate

OBDII Interface

Supports interface of: SAE J1850-VPW, SAE J 1850-PWM, ISO 15765, SAE J1939, ISO 14230 (KWP2000), ISO9142-2, SAE J1708

Driving behavior detection

Accurately detects reckless driving events such as harsh acceleration, turning, braking and crash.

BLE 5.0 for sensors

Compatible with TOPFLYtech’s BLE temp & humi senor TSTH1-B, temp & door sensor TSDT1-B, wireless relay TSR1-B and your own sensors

Reckless Driving Buzzer

Internal buzzer for waring drivers when harsh driving behaviour occurs.

Backup battery

Backup power for sending disconnection alerts when power disconnected

Ignition on/off alerts

Alerts for engine is switched on or off

Technical Specifications

-Operating Band-

LTE FDD Cat 1:
B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B1 9/ B20/B25/B26/B28/B66

LTE TDD Cat 1:
B34/B38/B39/B40/B41

GSM:850/900/1800/1900 MHz

-Data Transmission-

LTE-FDD:Max.10Mbps (DL), Max.5Mbps (UL)

LTE-TDD:Max.8.96Mbps(DL),Max.3.1Mbps(UL)

GPRS: Max. 85.6Kbps (DL), Max. 85.6Kbps (UL)

GNSS Chipset:All-In-One GNSS Receiver

Parallel GNSS:GPS+Beidou+Galileo+QZSS(SBAS)

Receiver Type:24 tracking / 64 acquisitions- channel GNSS receiver

Position Accuracy in open sky (CEP-50):Autonomous < 2m

TTFF @ -130 dBm with (without) EASY™

Cold Start: < 20s (30s)

Warm Start: < 2 (2s)

Hot Start: < 2s (2s)

OBDII Connector



CAN Data Reading:Yes



Support legislated OBDII protocols:

SAE J1850–VPW, SAE J1850-PWM, ISO 15765, SAE J1939, ISO 14230(KWP2000), ISO9142-2, SAE J1708



SIM card slot:Nano SIM card slot



LTE/GNSS/BLE Antenna:Internal only

Indicator LED:Network, Diagnostics and GNSS



FOTA:Yes



BLE (Bluetooth Low Energy):5.0



USB:Debug, configuration, upgrade



Buzzer: Event triggering

Dimensions:52.8mm*47.8mm*24.8mm (2.08” *1.88” *0.98”)

Weight:70g (2.5oz)

Backup Battery:Li-Polymer 100 mAh/3.7V

Operating Voltage:7V to 32V DC

Operating Temperature:-30℃ ~ +80℃ (-22°F ~ 176°F)

Storage Temperature:-40℃ ~ +85℃ (-40°F ~ 185°F)

Transmit Protocol:TCP, UDP, MQTT, SMS



Data Security & Encryption Option:MD5/ AES128



BLE Accessory Support:Yes



Diagnostic Trouble Code (DTC):Read and Erase



Scheduled Timing/angle/distance Report:Report position and status at preset intervals



External Power Status Alarm:Report when external power is disconnected



Low Power Alarm:Report when backup battery is low



Speeding Alarm:Report when speed exceed the pre-set value



Network Signal Jamming Detection:Report network jamming



Data Roaming Control:Avoid additional data consumption



Driving Behavior Monitoring:Aggressive driving behavior detection, e.g. harsh braking and acceleration



Crash Detection:Accident data collection for reconstruction and analysis



Data Roaming Control:Avoid additional data consumption

CE, RCM, FCC, TDRA, NBTC, CITC, Anatel
