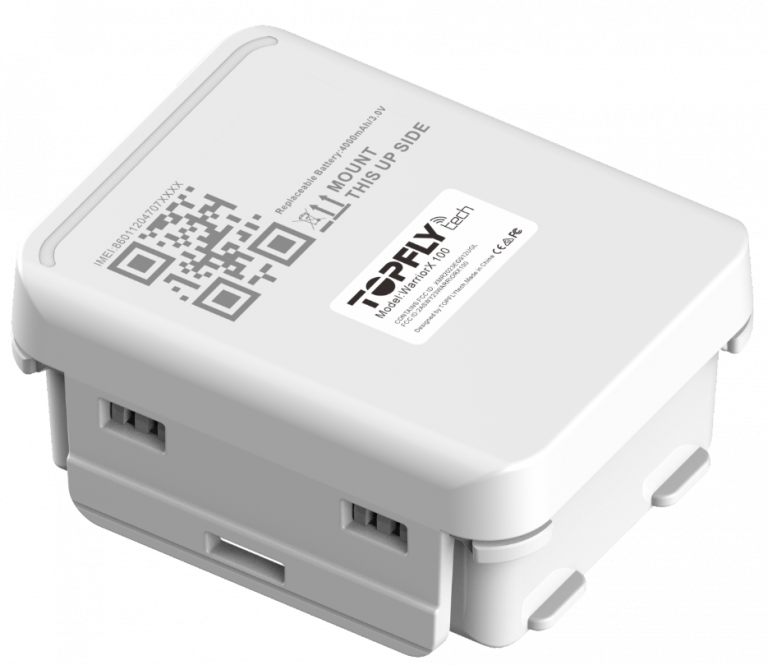

WarriorX 100
(4G CAT 1）
Long Life Battery Asset Tracker
Planned Certificates
WarriorX 100 is a standalone asset tracker with replaceable battery for outdoor uses. It’s Robust and waterproof with up to 6+ years battery life.
Features
Flexible reporting interval
Regular location updates to reduce power consumption. Change to frequent reporting in SVR mode.
Rugged construction
Thick and solid casing and rugged construction for outdoor uses
Long life battery
non-rechargeable 4000 mAh or optional 8000 mAh battery
IP67 waterproof
Tested in 5 meter under water pressure environment for 15 hrs
Removal alerts
Alerts sent when device is pulled off from asset
Easy installation
With an installation panel, it can be mounted with magnets, screws, polyurethane or zip tie by end users
Technical Specifications
LTE FDD Cat 1: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/ B20/B25/B26/B28/B66
LTE TDD Cat 1: B34/B38/B39/B40/B41
GSM: 850/900/1800/1900 MHz
4000mAh or 8000mAh battery:
1 report per day: 3 years or 5 years
GPS off: 3.5 years or 6 years
GNSS Chipset：All-In-One GNSS Receiver
Parallel GNSS：GPS + Glonass + Beidou + Galileo +QZSS
Horizontal Position Accuracy
Autonomous: < 1.5 m CEP
TTFF @ -130 dBm with (without) EPO：
Cold start: < 29s
Warm start: < 27s
Hot start: < 1s
Data Transmission：4 Pin port TypeC USB
Network, GNSS, WIFI Antenna：Internal only
Indicator LED：Network, GNSS
FOTA：Yes
Temperature Sensor：1
Waterproof：IP67
Dimensions：
82.8mm*66.9mm*35.7mm (3.26” *2.63” *1.40”)
Weight：160g (5.65oz)
Battery：Non-rechargeable 4000 mAh/3.0V battery (optional 8000 mAh)
Data Communication: TypeC USB cable
Operating Temperature：-30℃ ~ 80℃ (-22°F ~176°F)
Transmit Protocol：TCP, UDP, MQTT, SMS
Data Security & Encryption Option: MD5/AES
Geo-fence：Support up to 64 internal geo-fence regions
Low Power Alarm：Sending alarm when battery is low
Optional Accessories

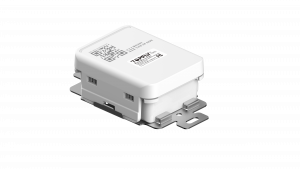

Installation Bracket
