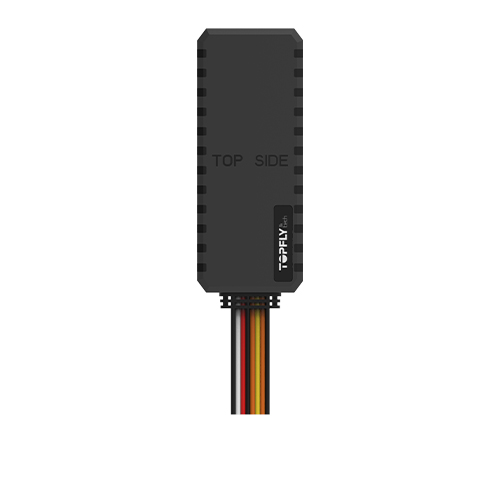

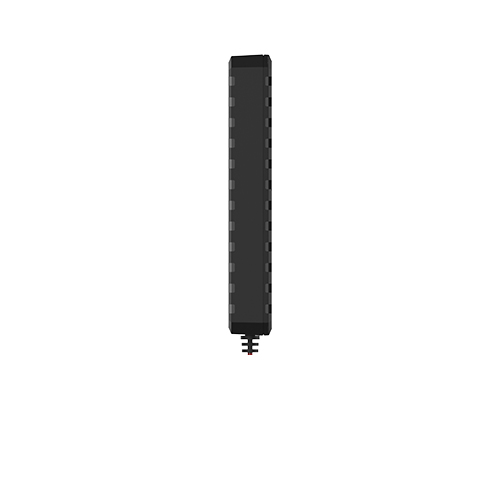

TLW1-8 (4G LTE)

Hardwired Tracker with BLE

TLW1-8 hardwired trackers are usually used for tracking powered assets and vehicles. It has more inputs in addition to the basic model TLW1-4, for SOS button, analog fuel sensors, or your own accessories. It also has ignition detection and output for relay/buzzer/siren. When working with BLE sensors it can monitor the temperature, humidity, door status, etc. It’s a model you go with when you have a more complexed needs in fleet management, logistics, cold chain, etc.

Features

Real time and buffer locations

Real time location updates can be as frequent as 3s. Up to 60,000 location points can be saved in buffer if out of network coverage.

Driving behaviour detection

Detecting reckless driving events such as harsh acceleration, turning,braking, crash and speeding

BLE 4.0 for sensors

Compatible with TOPFLYtech’s BLE temp & humi senor TSTH1-B, temp & door sensor TSDT1-B, wireless relay TSR1-B and your own sensors

Compact size​

One of the smallest hardwired trackers in the market

Backup battery

Backup power for sending disconnection alerts when power disconnected

Disconnection alerts​

Alerts for device disconnected from power

Ignition on/off alerts

Alerts for engine is switched on or off

Output for relay

Compatible with wiring relay and BLE relay for vehicle immobilisation for anti-theft

Digital input for SOS button

Configurable input for accessories

Input that can be used as digital or analogue input. Usually used for TOPFLYtech’s ultrasonic analog fuel sensor

Technical Specifications

TLW1-8A:

FDD: B1/B2/B3/B4/B12/B13/B25/B28
TDD: B39 (Cat M1 only)

TLW1-8E:

FDD: B1/B2/B3/B4/B5/B8/B18/B19/B20
EGPRS 900/1800MHz

GNSS Chipset:Qualcomm Gen 8C GNSS receiver

Parallel GNSS:GPS+Glonass+Galileo+Beidou

Receiver Type:33 tracking / 99 acquisitions- channel GNSS receiver

Position Accuracy (CEP):Autonomous < 2m

Standalone TTFF:Cold start: < 29s
                                   Warm start: < 27s
                                   Hot start: < 1s

Digital Input: 1 for ignition detection, 1 for SOS button

Digital Output:1

Configurable Input (Digital/Analog):1

Indicator LED:Network and GNSS

FOTA:Yes

BLE (Bluetooth Low Energy):4.0

Waterproof:IP66

Dimensions:87mm*35mm*13.5mm (3.43” *1.38” *0.53”)

Weight:48g (1.69oz)

Backup Battery:Li-Polymer 200 mAh/ 3.7V

Operating Voltage:7V to 32V DC

Operating Temperature:-30℃ ~ +80℃ (-22°F ~ 176°F)

Storage Temperature:-40℃ ~ +85℃ (-40°F ~ 185°F)

Transmit Protocol:TCP, UDP, MQTT, SMS

BLE Accessory Support:Yes

Scheduled Timing/angle/distance Report:Report position and status at preset intervals

External Power Status Alarm:Report when external power is disconnected

Low Power Alarm:Report when backup battery is low

Speeding Alarm:Report when speed exceed the pre-set value

Towing Alarm:From internal 3-axis accelerometer

Remote Control:Remote output control

Network Signal Jamming Detection:Report network jamming

Data Roaming Control:Avoid additional data consumption

Driving Behavior Monitoring:Aggressive driving behavior detection, e.g. harsh braking and acceleration

Crash Detection:Accident data collection for reconstruction and analysis
