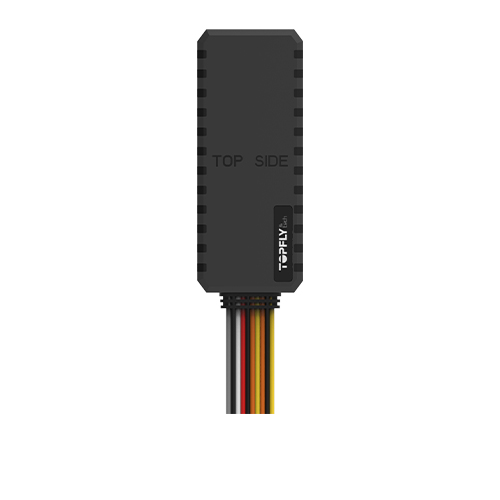

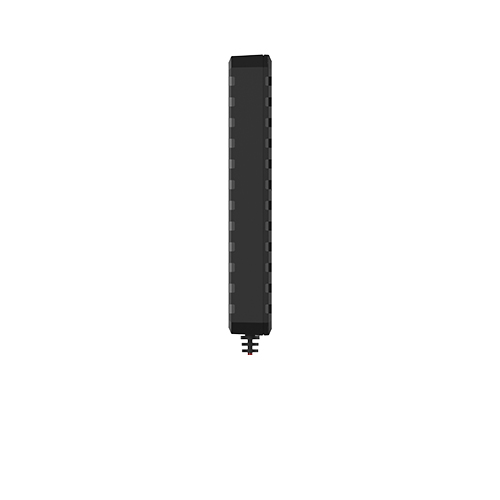

TLW1-10 (4G LTE)

Hardwired Tracker with BLE

TLW1-10 hardwired has 2 more inputs and 1 more outputs than TLW1-8. These inputs and outputs could used for ignition detection, relay, buzzer, SOS button, analog fuel sensors, or your own accessories. When working with BLE sensors it can monitor the temperature, humidity, door status, etc. It’s an all-in-one model to serve your needs for customised solution.

Features

Real time and buffer locations

Real time location updates can be as frequent as 3s. Up to 60,000 location points can be saved in buffer if out of network coverage.

Driving behaviour detection

Detecting reckless driving events such as harsh acceleration, turning,braking, crash and speeding

BLE 4.0 for sensors

Compatible with TOPFLYtech’s BLE temp & humi senor TSTH1-B, temp & door sensor TSDT1-B, wireless relay TSR1-B and your own sensors

Compact size​

One of the smallest hardwired trackers in the market

Disconnection alerts​

Alerts for device disconnected from power

Backup battery

Backup power for sending disconnection alerts when power disconencted

Ignition on/off alerts

 Alerts for engine is switched on or off

2 Digital input for ignition detection and SOS button​

Out

2 Digital outputs

Compatible with wiring relay, buzzer and siren for vehicle immobilisation for anti-theft

In

2 Configurable inputs

Input that can be used as digital or analogue input. Usually used for TOPFLYtech’s ultrasonic analogue fuel sensor

Technical Specifications

TLW1-10A:

FDD: B1/B2/B3/B4/B12/B13/B25/B28
TDD: B39 (Cat M1 only)

TLW1-10E:

FDD: B1/B2/B3/B4/B5/B8/B18/B19/B20
EGPRS 900/1800MHz

GNSS Chipset:Qualcomm Gen 8C GNSS receiver

Parallel GNSS:GPS+Glonass+Galileo+Beidou

Receiver Type:33 tracking / 99 acquisitions- channel GNSS receiver

Position Accuracy (CEP):Autonomous < 2m

Standalone TTFF:Cold start: < 29s
                                   Warm start: < 27s
                                   Hot start: < 1s

Digital Input: 1 for ignition detection, 1 for SOS button

Digital Output:2

Configurable Input (Digital/Analog):2

Indicator LED:Network and GNSS

FOTA:Yes

BLE (Bluetooth Low Energy):4.0

Waterproof:IP66

Dimensions:87mm*35mm*13.5mm (3.43” *1.38” *0.53”)

Weight:48g (1.69oz)

Backup Battery:Li-Polymer 200 mAh/ 3.7V

Operating Voltage:7V to 32V DC

Operating Temperature:-30℃ ~ +80℃ (-22°F ~ 176°F)

Storage Temperature:-40℃ ~ +85℃ (-40°F ~ 185°F)

Transmit Protocol:TCP, UDP, MQTT, SMS

BLE Accessory Support:Yes

Scheduled Timing/angle/distance Report:Report position and status at preset intervals

External Power Status Alarm:Report when external power is disconnected

Low Power Alarm:Report when backup battery is low

Speeding Alarm:Report when speed exceed the pre-set value

Towing Alarm:From internal 3-axis accelerometer

Remote Control:Remote output control

Network Signal Jamming Detection:Report network jamming

Data Roaming Control:Avoid additional data consumption

Driving Behavior Monitoring:Aggressive driving behavior detection, e.g. harsh braking and acceleration

Crash Detection:Accident data collection for reconstruction and analysis
