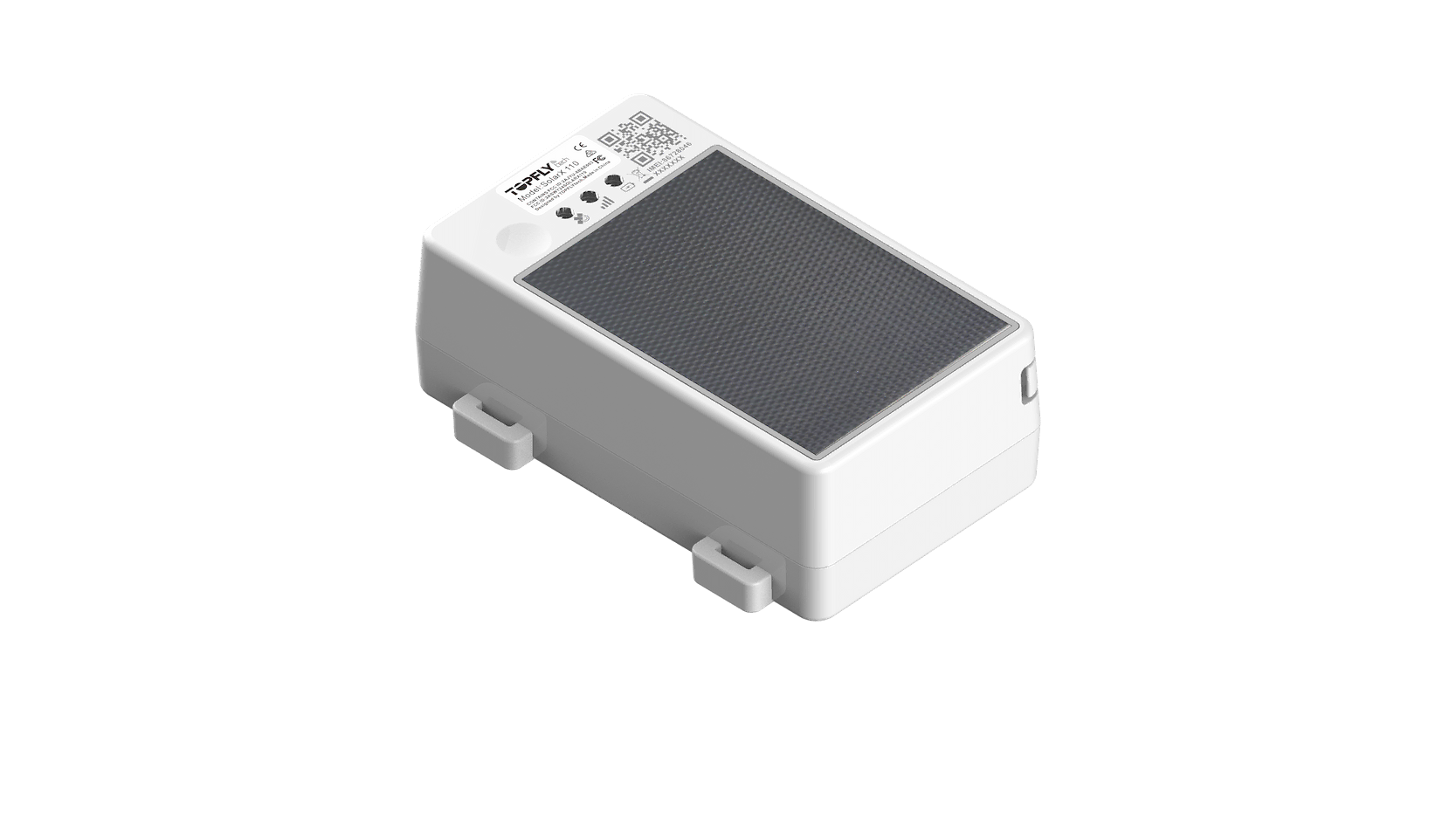

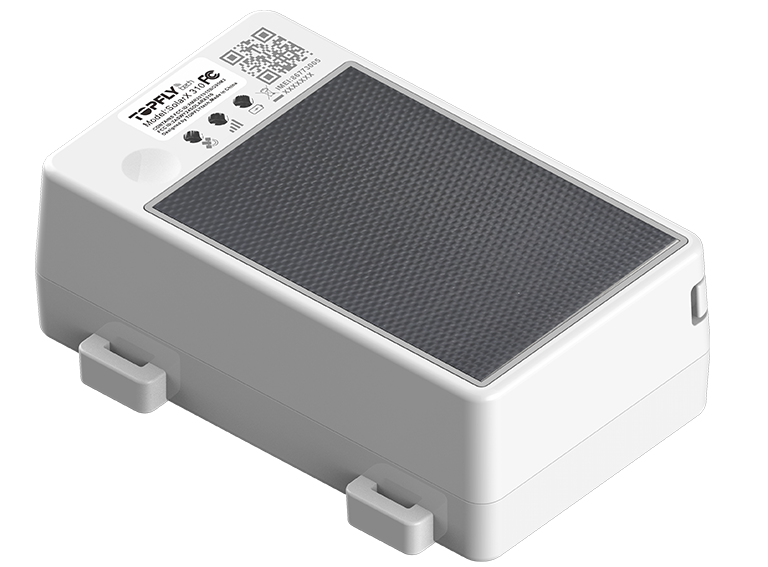

SolarX 310
(4G LTE)
Solar Powered Asset Tracker
Planned Certificates
It’s suitable for tracking and monitoring assets such as containers, trailers, trucks, etc. It reports alarm to server for events of start moving, stop moving, device removal, etc. It works with BLE temperature sensor, door sensors etc.
Features
Real time and buffer locations
Real time location updates can be as frequent as 3s. Up to 60,000 location points can be saved in buffer if out of network coverage.
Movement alerts
Alerts for asset moving and parking
Solar powered
It obtains power through solar panel to extend battery life
Rugged construction
Thick and solid casing and rugged construction for outdoor uses
Long life battery
Rechargeable Li-Polymer 2500 mAh/3.6V battery, battery last for months without solar charging
BLE 5.3 for sensors
Compatible with TOPFLYtech’s BLE 2-in-1 temperature and door sensors, T-sense.
Removal alerts
Alerts sent when device is pulled off from asset
Easy installation
It can be mounted with magnets, screws, polyurethane or heavy duty tape by end users
IP67 waterproof
Tested in 5-meter water pressure environment for 15 hrs
Technical Specifications
LTE FDD Cat M1:
B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/
B25/B26/B27/B28/B66/B85
LTE FDD Cat NB2:
B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/
B25/B28/B66/B71/B85
GSM/EDGE:
850/900/1800/1900 MHz
GNSS Chipset: All-In-One GNSS Receiver
GNSS System: GPS + Glonass + Beidou + Galileo +QZSS
Receiver type: 47 tracking / 47 acquisitions- channel GNSS receive
Acquisition: -147dBm
Tracking: -166dBm
Reacquisition: -159dBm
Horizontal Position Accuracy: Autonomous: < 2 m CEP
TTFF @ -130 dBm with (without) Easy
Cold start: <15S/28s
Warm start: <25s/2s
Hot start: <1s/1
Type-C connector
Internal Network, GNSS Antenna
LED Indicator: Network, GNSS and Battery
Touch button: for Power On and Off
FOTA: Yes
Hall Switch: For Remove Alert
Temperature Sensor: Built-in Temperature sensor
BLE 5.3: Yes
Sim Card: Nano Sim Card
Tracker Configuring: Type-C Connector
Waterproof: IP67
Dimensions: 88mm*60.4mm*30.7mm (3.46” *2.38” *1.21”)
Weight: 150g (5.3oz)
Battery: Rechargeable Li-Polymer 2500 mAh/ 3.6V
Standby Time:
30 minutes reporting: 100 Days
5 minutes reporting: 45 Days
Charging & Data Communication
Type-C cable (A to C and C to C)
Operating Temperature: -30℃ ~ +80℃ (-22°F ~ 176°F)
Mounting: Magnet/Screw/Double-sided tape
Transmit Protocol: TCP, UDP, MQTT, SMS
Data Security & Encryption Option: MD5/ AES128
BLE Accessory Support: Yes
Scheduled Timing/angle/distance Report: Report position and status at preset intervals
Geo-fence: Support up to 64 internal Geo-fence regions
Alarms: Support up to 31 types of alarm
FCC, PTCRB, IC, AT&T, US Cellular, Verizon, T-mobile, Sprint
Optional Accessories
Installation Bracket
