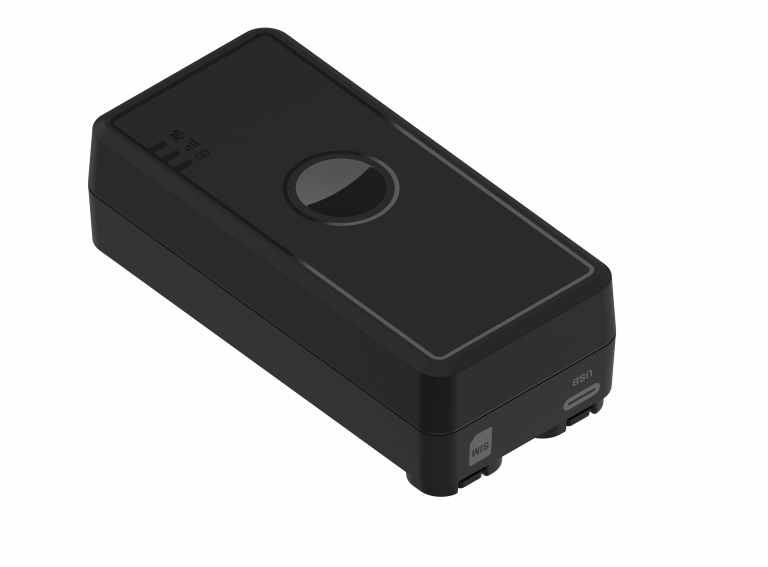

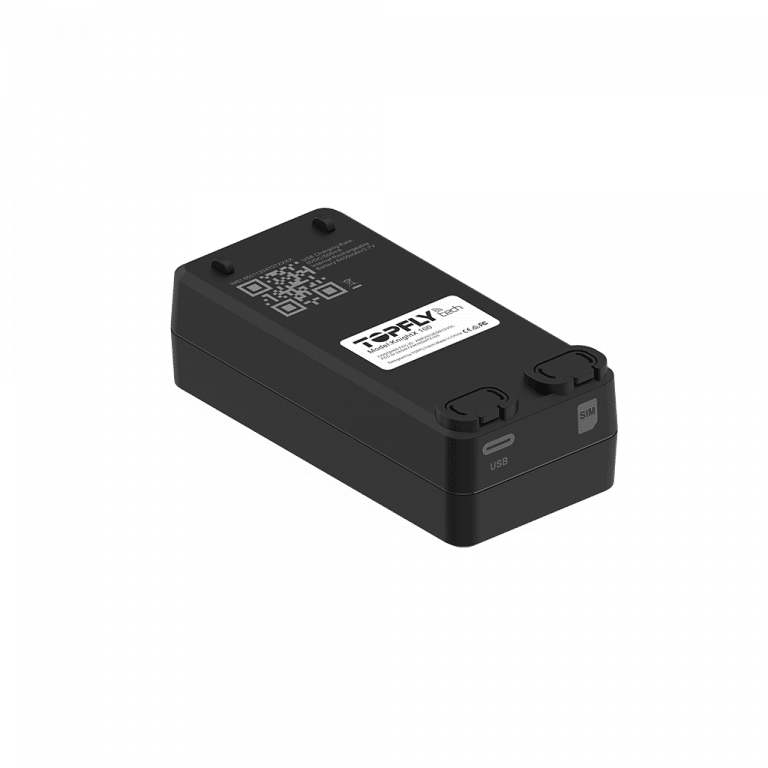

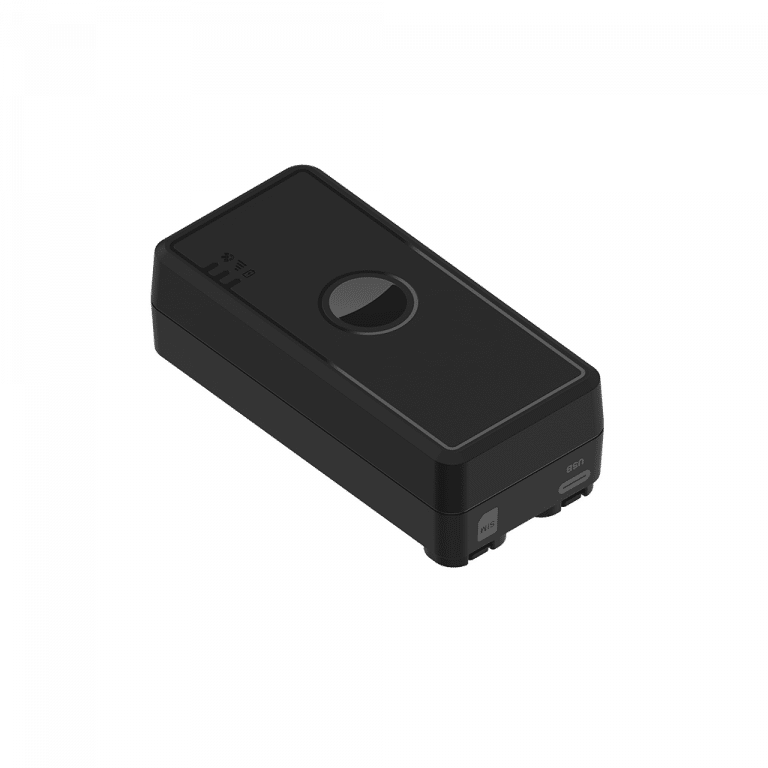

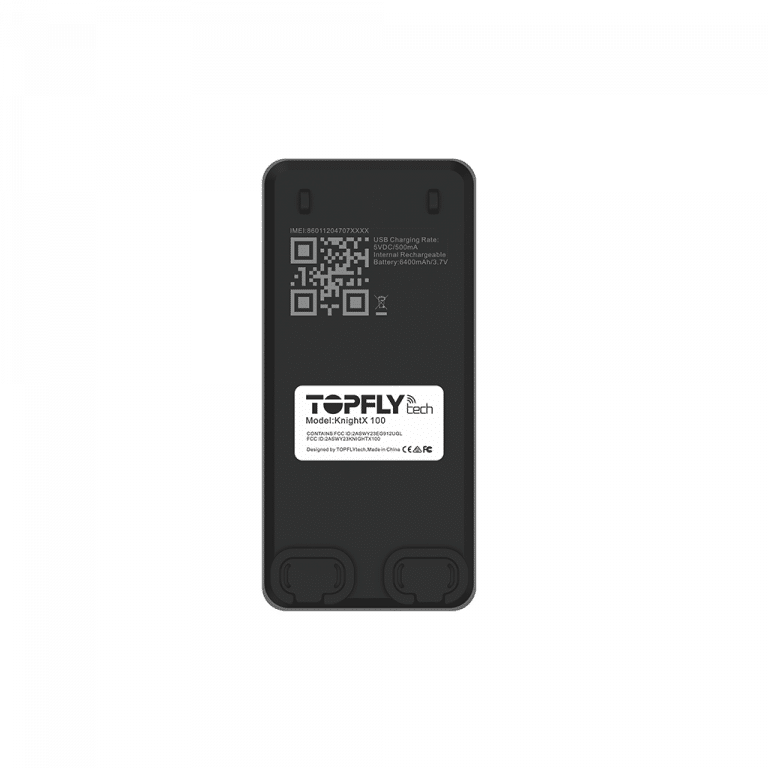

KnightX 300
(4G CAT-M1)

Battery Asset Tracker

Completed Certificates

KnightX 300 is advanced rechargeable battery powered tracker with panic button, optional temperature probe for wide ranging applications.

Features

Real time and buffer locations

Real time location updates can be as frequent as 3s. Location points can be saved in buffer if out of network coverage.

Movement alerts

Alerts for start and stop moving

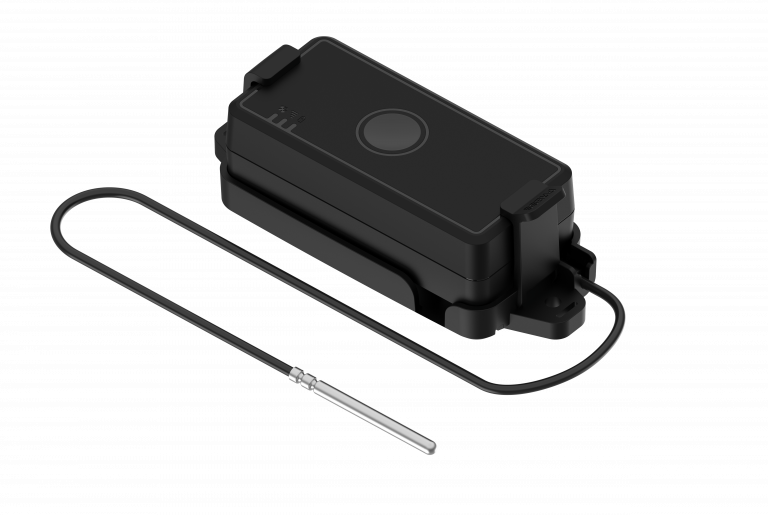

Temperature probe

Optional external temperature probe

Real time and buffer locations

Real time location updates can be as frequent as 3s. Location points can be saved in buffer if out of network coverage.

Movement alerts

Alerts for start and stop moving

Temperature probe

Optional external temperature probe

No installations

It can be simply left in properties without any installation

No installations

It can be simply left in properties without any installation

Long life battery

Rechargeable 6400 mAh / 3.7V battery

IP67 waterproof

Not for outdoor uses

BLE 5.1

BLE for Wireless Sensors and accessories

Long life battery

Rechargeable 6400 mAh / 3.7V battery

IP67 waterproof

Not for outdoor uses

BLE 5.1

BLE for Wireless Sensors and accessories

Technical Specifications

LTE FDD Cat M1: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85

LTE FDD Cat NB2: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85

GSM/EDGE: 850/900/1800/1900 MHz

2 hours active tracking per day:

10 min reporting – 247 days

5 min reporting – 130 days

1 min reporting – 44 days

GNSS Chipset: All-In-One GNSS Receiver

Parallel GNSS: GPS + Glonass + Beidou + Galileo +QZSS

Horizontal Position Accuracy: Autonomous: < 1.5 m CEP

TTFF @ -130 dBm with (without) EPO

Cold Start: < 5s (28s)

Warm Start: < 2s (25s)

Hot Start: < 1s (1s)

Data Transmission: USB-C

Network, GNSS, WIFI Antenna: Internal only

Indicator LED: Network, GNSS and Power

FOTA:Yes

Temperature Sensor: 1 internal, and optional external temperature probe

Waterproof: IP67

Dimensions: 91.8mm*43.5mm*29.2mm(”3.61 *1.71” *1.14”)

Weight:165g(5.85oz)

Battery:Lithium-ion 6400mAh/ 3.7V

Data Communication: TypeC USB cable

Operating Temperature:-20℃ ~ 80℃ (-4°F ~176°F)

Transmit Protocol:TCP, UDP, MQTT, SMS

Data Security & Encryption Option: MD5/AES

Low Power Alarm:Sending alarm when battery is low

Accessories

Installation Bracket

Mounting Magnet​

TOPFLYtech KnightX 100 Hidden Design Personal Tracker termperature probe also can be used in high value tracking and cold chain fleet management

Temperature Probe

Temperature Sensor
(optional door detection)

TSTH1-B Temperature And Humidity Sensor Bluetooth 5.0 fleet management cold chain solution vehicle Tracking Solution Asset Tracking solution by TOPFLYtech

TSTH1-B Temperature And Humidity Sensor Bluetooth 5.0

TSR1-B Wireless Relay Vehicle ACC on/off control Probe Sensor Bluetooth 5.0 fleet management cold chain solution vehicle Tracking Solution Asset Tracking solution by TOPFLYtech

TSR1-B Wireless Relay

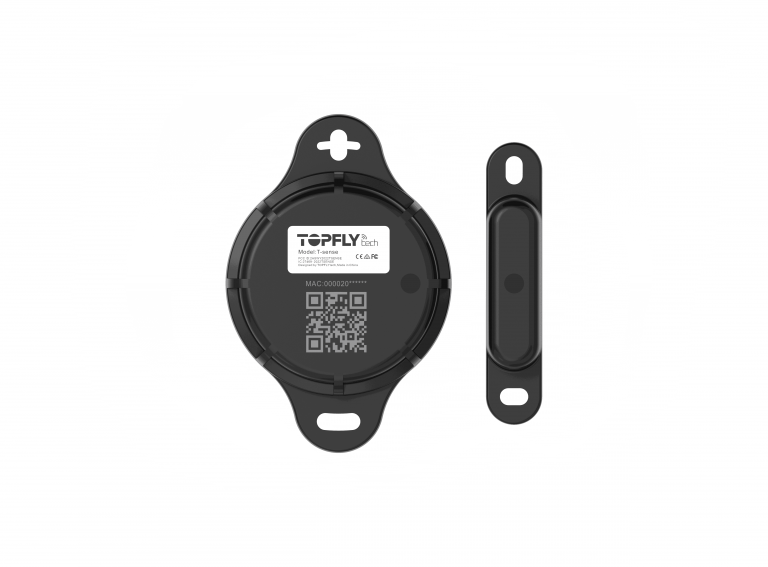

T-button Wireless temperature and door sensor BLE5.0 Probe Sensor Bluetooth 5.0 fleet management cold chain solution vehicle Tracking Solution Asset Tracking solution Driver Behavior by TOPFLYtech

T-Button Key Fob and
Panic Button

T-Relay BLE 5.2 + Hardwired Relay
