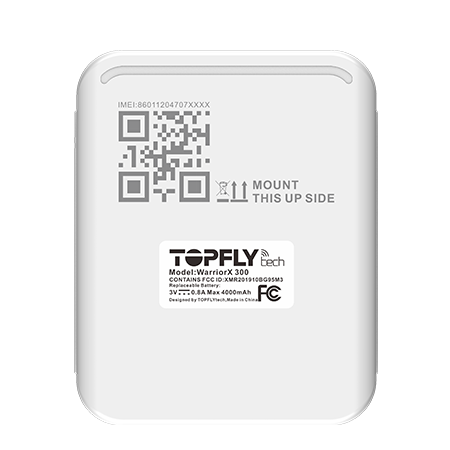

WarriorX 300
(4G CAT-M1）
Long Life Battery Asset Tracker
Completed Certificates
WarriorX 300 has completed carrier-focused certifications, including FCC, IC, PTCRB, and approvals from US Cellular, AT&T, and T-Mobile, confirming compliance for battery-powered asset tracking deployments across North America. These certifications enable carrier-grade connectivity, stable low-power operation, and reliable performance for large-scale asset visibility, logistics monitoring, and fleet-related tracking projects.
WarriorX 300 is a standalone asset tracker with replaceable battery for outdoor uses. It’s Robust and waterproof with up to 6+ years battery life.
Features
Flexible reporting interval
Regular location updates to reduce power consumption. Change to frequent reporting in SVR mode.
Rugged construction
Thick and solid casing and rugged construction for outdoor uses
Long life battery
non-rechargeable 4000 mAh or optional 8000 mAh battery
Flexible reporting interval
Rugged construction
Thick and solid casing and rugged construction for outdoor uses
Long life battery
non-rechargeable 4000 mAh or optional 8000 mAh battery
IP67 waterproof
Tested in 5 meter under water pressure environment for 15 hrs
IP67 waterproof
Tested in 5 meter under water pressure environment for 15 hrs
Removal alerts
Alerts sent when device is pulled off from asset
Easy installation
With an installation panel, it can be mounted with magnets, screws, polyurethane or zip tie by end users
Removal alerts
Alerts sent when device is pulled off from asset
Easy installation
With an installation panel, it can be mounted with magnets, screws, polyurethane or zip tie by end users
Technical Specifications
Network/Operating Band
LTE FDD Cat M1: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
LTE FDD Cat NB2: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
GSM/EDGE: 850/900/1800/1900 MHz
Battery Life
4000mAh or 8000mAh battery:
1 report per day: 3.3 years or 6.5 years
GPS off: 4.5 years or 8.2 years
GNSS Specifications
GNSS Chipset: All-In-One GNSS Receiver
Parallel GNSS: GPS + Glonass + Beidou + Galileo +QZSS
Horizontal Position Accuracy
Autonomous: < 1.5 m CEP
TTFF @ -130 dBm with (without) EPO:
Cold start: < 29s
Warm start: < 27s
Hot start: < 1s
Interfaces
Data Transmission: 4 Pin port TypeC USB
Network, GNSS, WIFI Antenna：Internal only
Indicator LED: Network, GNSS
FOTA: Yes
Temperature Sensor: 1
General Specifications
Waterproof: IP67
Dimensions:
82.8mm*66.9mm*35.7mm (3.26” *2.63” *1.40”)
Weight: 160g (5.65oz)
Battery: Non-rechargeable 4000 mAh/3.0V battery (optional 8000 mAh)
Data Communication: TypeC USB cable
Operating Temperature: -30℃ ~ 80℃ (-22°F ~176°F)
Air Interface Protocol
Transmit Protocol：TCP, UDP, MQTT, SMS
Data Security & Encryption Option: MD5/AES
Geo-fence：Support up to 64 internal geo-fence regions
Low Power Alarm：Sending alarm when battery is low
Certification
FCC, IC, PTCRB, and approvals from US Cellular, AT&T, T-Mobile
Optional Accessories
Installation Bracket
Mounting Magnet
