SolarGuardX 100
(4G CAT-M1)

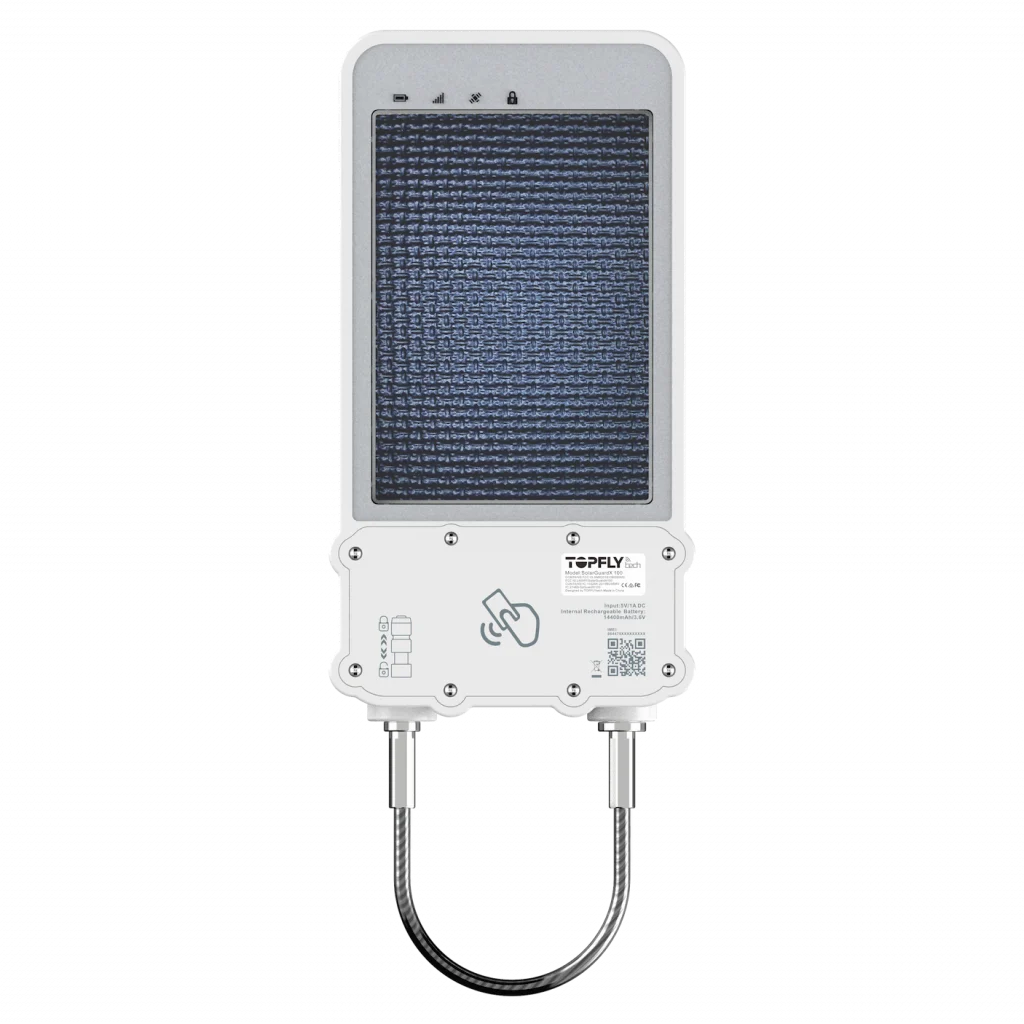

Solar powered cargo GPS Padlock
Completed Certificates
This Solar GPS Padlock is designed and developed for outdoor asset tracking telematic structures. It has a long-life battery, solar-powered with high charging efficiency, and is suitable for tracking and safeguarding assets such as containers, trailers, trucks, etc. The solar-powered E-lock for cargo reports alarms to the server for events of rope cutting, locking, and unlocking. Furthermore, our padlock can be opened both remotely and in the near field by either RFID and BLE or with commands via network and SMS.
Features
Real time and buffer locations
Real time location updates can be as frequent as 3s. Up to 49,000 location points can be saved in buffer if out of network coverage.
BLE 5.1
Compatible with TOPFLYtech’s BLE temp & humi senor TSTH1-B, temp & door sensor TSDT1-B, wireless relay TSR1-B and your own sensors
Motion detection
Alerts for asset moving and parking
Real time and buffer locations
Real time location updates can be as frequent as 3s. Up to 49,000 location points can be saved in buffer if out of network coverage.
BLE 5.0
Compatible with TOPFLYtech’s BLE temp & humi senor TSTH1-B, temp & door sensor TSDT1-B, wireless relay TSR1-B and your own sensors
Motion detection
Alerts for asset moving and parking
Solar powered
It obtains power through solar panel to extend battery life
Solar powered
It obtains power through solar panel to extend battery life
Rugged construction
Thick and solid casing and rugged construction for outdoor uses
Super long life battery
Rechargeable Li-Polymer 14400 mAh/3.6V battery, battery last for months without solar powered charging
Rugged construction
Thick and solid casing and rugged construction for outdoor uses
Super long life battery
Rechargeable Li-Polymer 14400 mAh/3.6V battery, battery last for months without solar powered charging
IP67 waterproof
Tested in 5-meter water pressure environment for 15 hrs
Security alarm
For locking, unlocking, rope cutting
IP67 waterproof
Tested in 5-meter water pressure environment for 15 hrs
Security alarm
For locking, unlocking, rope cutting
Multiple control mode
Unlock by RFID, BLE, OTA, SMS commands
Built-in strong magnet
Built-in magnet for easy installation on assets
Built-in Geofence
For locking, unlocking and rope cutting
FOTA
Firmware Upgrade Over-the-air
Built-in strong magnet
Built-in magnet for easy installation on assets
Built-in Geofence
For locking, unlocking and rope cutting
FOTA
Firmware Upgrade Over-the-air
Multiple control mode
Unlock by RFID, BLE, OTA, SMS commands
Technical Specifications
LTE FDD Cat M1: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
LTE FDD Cat NB2: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
GSM/EDGE:850/900/1800/1900 MHz
14400mAh/3.6V
GNSS Chipset：MediaTek High Gain GNSS receiver
Parallel GNSS：GPS+Glonass or GPS+Beidou
Horizontal Position Accuracy (CEP)：Autonomous < 2.5m
Charging Port：2 Pin 5V/DC
Network, GNSS Antenna：Internal only
Indicator LED：Network, GNSS, RFID and Battery
FOTA：Yes
Physical Power Switch：1
Temperature Sensor：1 temperature sensor
SIM Card：Nano SIM
USB Type-C Connection：Data Communication and Charging
BLE 5.0：Yes
Waterproof: IP67
Dimensions: 207.5mm*110.2mm*48.1 mm (8.17” *4.39” *1.9”) without rope
Weight: 1060g (37.4 oz)
Battery: Rechargeable Li 14400 mAh/ 3.6V
Charging: Customized USB cable (Recommended using 5V 1A adaptor, 30 hours charging)
Solar Panel: For charging the tracker battery
Operating Temperature: -25℃ ~ +80℃ (-13°F ~ 176°F)
Mounting: Built-in Magnet
Rope: 350mm (standard)
Transmit Protocol: TCP, UDP, MQTT, SMS
Data Security & Encryption Option: MD5/AES256
BLE Accessory Support: Yes
Scheduled Timing/angle/distance/Report: Report position and status at preset intervals
Geo-fence: Support up to 64 internal geo-fence regions
Alarms: Rope cut, moving, stop, lock, unlock
FCC, CE, IC, PTCRB, RCM, AT&T, US Cellular, Orange
