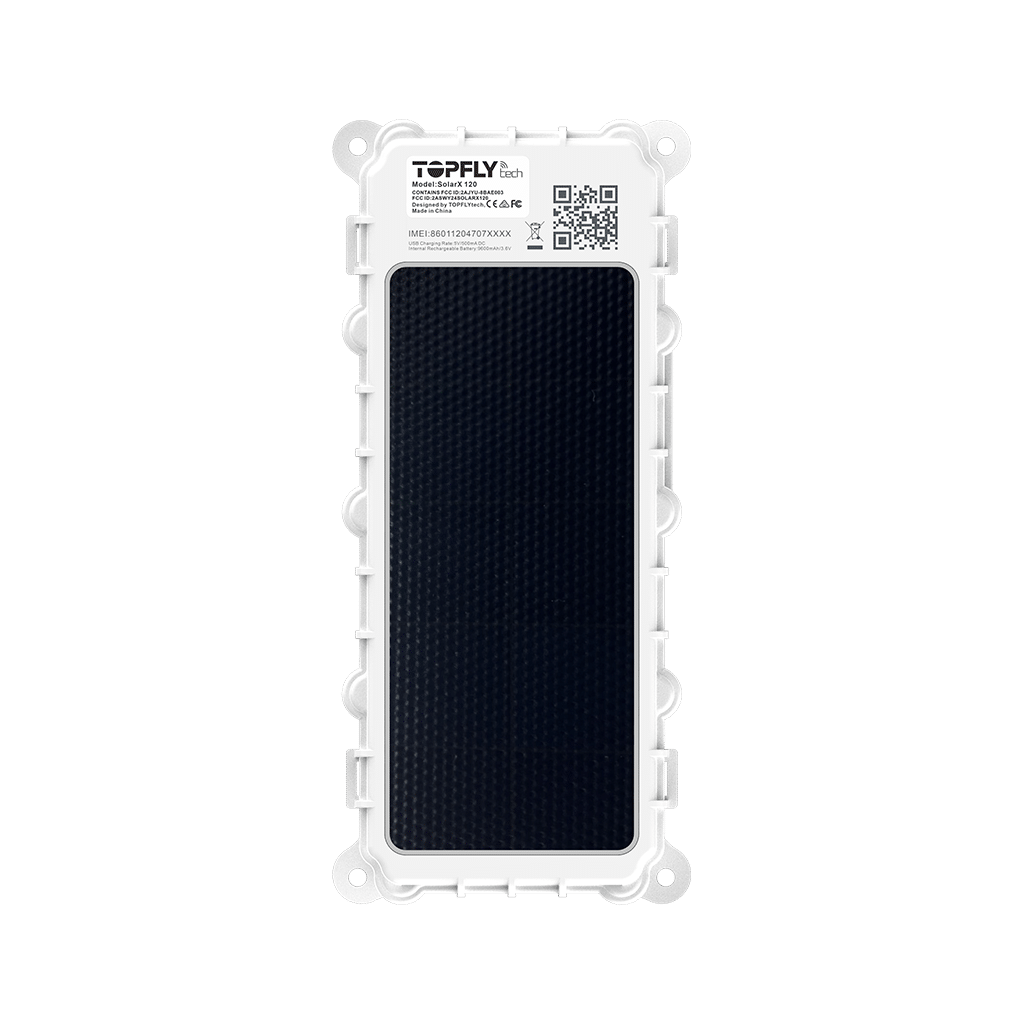

SolarX 120
(4G CAT-1)
Large Solar Powered Asset Tracker
Completed Certificates
It’s suitable for tracking and monitoring assets such as containers, trailers, trucks, etc. It reports alarm to server for events of start moving, stop moving, device removal, etc. It works with BLE temperature sensor, door sensors etc.
Features
Real time and buffer locations
Real time location updates can be as frequent as 3s. Up to 49,000 location points can be saved in buffer if out of network coverage.
Movement alerts
Alerts for asset moving and parking
Solar powered
It obtains power through solar panel to extend battery life
Real time and buffer locations
Real time location updates can be as frequent as 3s. Up to 49,000 location points can be saved in buffer if out of network coverage.
Movement alerts
Alerts for asset moving and parking
Solar powered
It obtains power through solar panel to extend battery life
Rugged construction
Thick and solid casing and rugged construction for outdoor uses
Rugged construction
Thick and solid casing and rugged construction for outdoor uses
Long life battery
Rechargeable Li-Polymer 7500 mAh/3.6V battery, battery last for months without solar charging
BLE 5.3 for sensors
Compatible with TOPFLYtech’s BLE temp & humi senor TSTH1-B, temp & door sensor TSDT1-B, wireless relay TSR1-B and your own sensors
Long life battery
Rechargeable Li-Polymer 7500 mAh/3.6V battery, battery last for months without solar charging
BLE 5.3 for sensors
Compatible with TOPFLYtech’s BLE temp & humi senor TSTH1-B, temp & door sensor TSDT1-B, wireless relay TSR1-B and your own sensors
Removal alerts
Alerts sent when device is pulled off from asset
Easy installation
It can be mounted with magnets, screws, polyurethane or heavy duty tape by end users
IP67 waterproof
Tested in 5-meter water pressure environment for 15 hrs
Technical Specifications
LTE FDD Cat 1:
B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/
B20/B25/B26/B28/B66
LTE TDD Cat 1: B34/B38/B39/B40/B41
GSM (2G): 850/900/1800/1900 MHz
GNSS Chipset: All-In-One GNSS Receiver
GNSS System: GPS + Beidou + Galileo + QZSS（SBAS）
Receiver type: 24 tracking / 64 acquisitions- channel GNSS receiver
Acquisition: -148 dBm
Reacquisition: -159 dBm
Tracking: -162 dBm
Horizontal Position Accuracy: Autonomous: < 1.5 m CEP
TTFF @ -130 dBm with (without) Easy
Cold Start: < 20s (30s)
Warm Start: < 2 (2s)
Hot Start: < 2s (2s)
Charging and Data Transmission: USB-C cable
Network, GNSS Antenna: Internal only
Indicator LED: Network, GNSS and Battery level
FOTA: Yes
Physical Power Switch: 1
Light Sensor: Yes
Temperature Sensor: 1 temperature sensor
BLE 5.3: yes
Waterproof: IP67
Dimensions: 85mm*185mm*31mm (3.35” *7.28” *1.22”)
Weight: 370g (13.05oz)
Battery: Rechargeable Li-Polymer 7500 mAh/ 3.6V
Charging & Data Communication: Magnetic USB cable
Solar Panel: For charging the tracker battery
Operating Temperature： -25℃ ~ +80℃ (-13°F ~ 176°F)
Mounting: Magnet/Screw/Cable Tie/Glue
Transmit Protocol: TCP, UDP, MQTT, SMS
Geo-fence: Support up to 64 internal geo-fence regions
Low Power Alarm: Sending alarm when battery is low
Motion Detection: Motion alarm based on internal 3-axis accelerometer
Removal Alarm: Sending alarm when the light sensor detecting the light changing
