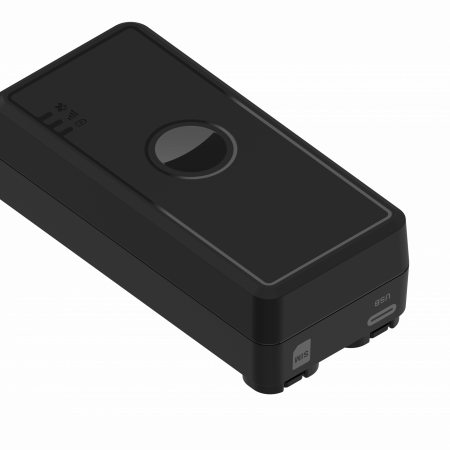

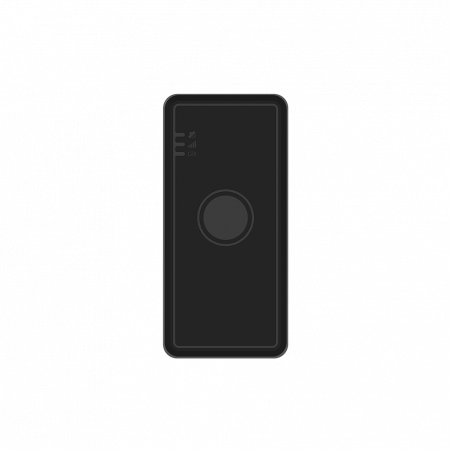

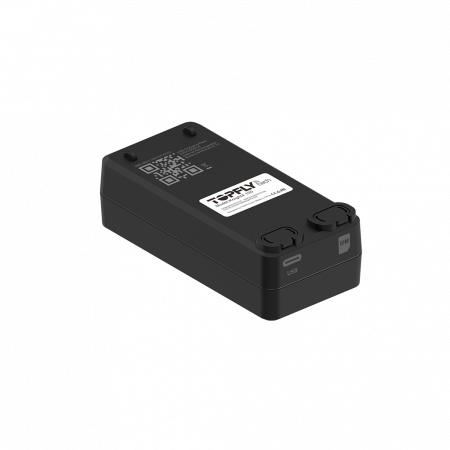

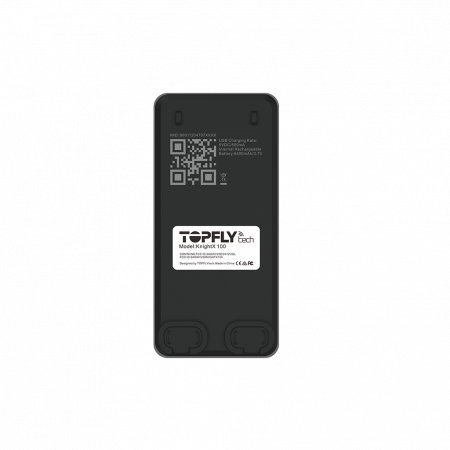

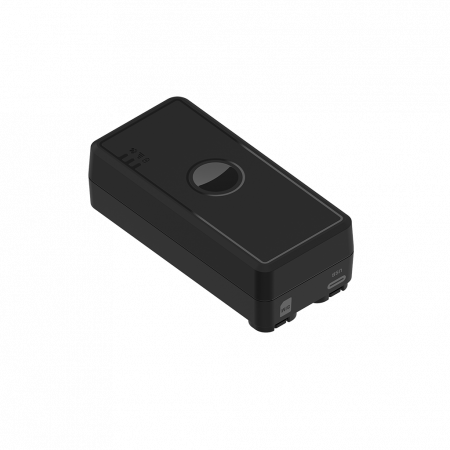

KnightX 100
(4G CAT 1）
Battery Asset Tracker
Completed Certificates
Mounting MagnetKnightX 100 is advanced rechargeable battery powered tracker with panic button, optional temperature probe for wide ranging applications.
Features
Real time and buffer locations
Real time location updates can be as frequent as 3s. Location points can be saved in buffer if out of network coverage.
Movement alerts
Alerts for start and stop moving
Temperature probe
Optional external temperature probe
Real time and buffer locations
Real time location updates can be as frequent as 3s. Location points can be saved in buffer if out of network coverage.
Movement alerts
Alerts for start and stop moving
Temperature probe
Optional external temperature probe
No installations
It can be simply left in properties without any installation
No installations
It can be simply left in properties without any installation
WIFI positioning
GPS + WIFI +LBS positioning for different scenario
Long life battery
Rechargeable 6400 mAh / 3.7V battery
WIFI positioning
GPS + WIFI +LBS positioning for different scenario
Long life battery
Rechargeable 6400 mAh / 3.7V battery
IP67 waterproof
Not for outdoor uses
BLE 5.1
BLE for wireless sensors and accessories
IP67 waterproof
Not for outdoor uses
BLE 5.1
BLE for wireless sensors and accessories
Technical Specifications
LTE FDD Cat 1: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/ B20/B25/B26/B28/B66
LTE TDD Cat 1: B34/B38/B39/B40/B41
GSM: 850/900/1800/1900 MHz
2 hours active tracking per day:
10 min reporting – 215 days
5 min reporting – 141 days
1 min reporting – 38 days
GNSS Chipset: All-In-One GNSS Receiver
Parallel GNSS: GPS + Glonass + Beidou + Galileo +QZSS
Horizontal Position Accuracy: Autonomous: < 1.5 m CEP
TTFF @ -130 dBm with (without) EPO:
Cold start: < 15s (30s)
Warm start: < 2s (25s)
Hot start: < 2s (2s)
Data Transmission: USB-C
Network, GNSS, WIFI Antenna: Internal only
Indicator LED: Network, GNSS and Power
FOTA: Yes
Temperature Sensor: 1 internal, and optional external temperature probe
Waterproof: IP67
Dimensions: 91.8mm*43.5mm*29.2mm(”3.61 *1.71” *1.14”)
Weight: 165g(5.85oz)
Battery: Lithium-ion 6400mAh/ 3.7V
Data Communication: USB-C cable
Operating Temperature: -20℃ ~ 80℃ (-4°F ~176°F)
Transmit Protocol: TCP, UDP, MQTT, SMS
Data Security & Encryption Option: MD5/AES
Low Power Alarm: Sending alarm when battery is low
Optional Accessories
Installation Bracket
Mounting Magnet
